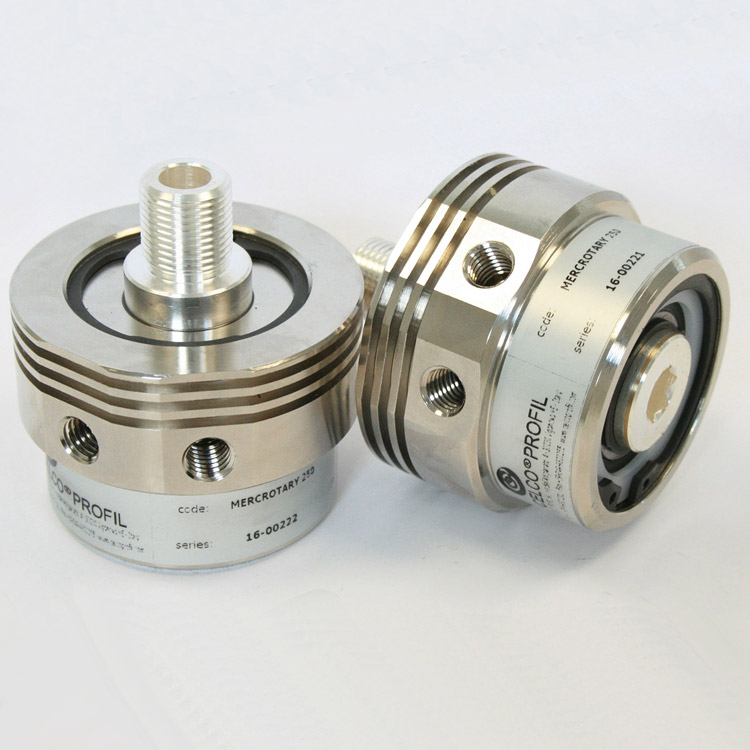

Mercrotary
This is a unipolar mercury manifold with or without a through-hole suitable for high amperage and low rotations per minute. It is a Celco Profil product that completes the Mercotac® product range.
Available ecological version that uses galinstan instead of mercury.
Technical specifications
| Mod N° | Conductors N° | Current rating 240VAC | MAX RPM | Rotation torque Gr-cm | Diam through hole mm |
|---|---|---|---|---|---|
| MY250 | 1 | 250 | 300 | 20.000 | 40 |
| MY254 | 1 | 250 | 300 | 9000 | 22 |
| MY255 | 1 | 250 | 300 | 1000 | 12 |
| MY503 | 1 | 500 | 300 | 1500 | 12 |
| MY504 | 1 | 500 | 300 | 1500 | 8 |
| MY1000 | 1 | 1000 | 300 | 30.000 | 30 |
Features
• Contact resistance less than 1mΩ
• Maximum reliability of theproduct.
• With through hole
• Standard degree of protection: IP00
Applications
- Industrial welding machines
- Robotics
- Galvanic sector
