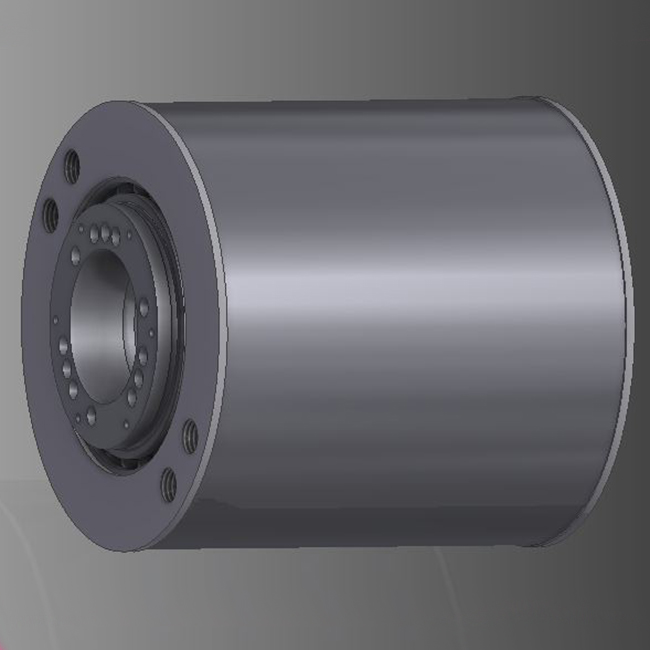

XPR221
Electric rotary joints with slip ring, for the transmission on 360° of power ratings, auxiliaries, digital and analog signals.
With through hole.
With aluminium cover, diameter of 220mm.
Technical specifications
| Model | Rings N° | Power rings | Auxiliary rings | Max RPM | Hole diam mm |
|---|---|---|---|---|---|
| XPR221-(12p+5s)C | 17 | 12x30Amp | Fieldbus | 250 | min 45 max 76 |
| XPR221-(12p+8s)A | 20 | 12x30Amp | 8x10Amp | 300 | min 45 max 76 |
| XPR221-20p | 20 | 20x30Amp | / | 300 | min 45 max 76 |
| XPR221-(15p+20s)A | 35 | 15x30Amp | 20x5Amp | 300 |
Features
• Insulation voltage up to 600V
• Rings: brass
• Rings output cable: axials
• Brushes output cable: axials
• Standard degree of protection IP54
• Ring-brush contact resistance: < 20 mohm
